MODEL BATTERY
XING Solutions Technology has more than 10 years of experience in the battery field, the key persons worked in top battery factories for more than 20 years.
- Xingsolutions-Your Premier MODEL Battery Supplier
- Best Quality
- Focus On Customized Design
- Suitable Price
- Samples Available
22.2 22000mAh MODEL Battery
- Model No : 1190190
- Capacity : 22000mAh(0.5C)
- Weight: 2650±50g
- Dimensions:202 Length x93mm Width x 69mm Height
- Connector Type:T plug DC5 plug XT60 XT90
- Nominal Voltage : 22.2V
- Full Charge Voltage : 25.2V
- Full Discharge Voltage : 18.0V
- Cycle LIfe : 300Cycles
- Charge Current : 0～2C
- Max. Continuous Discharge Current : 15C
- Max. Instantaneous Discharge Current : 40C(<200ms)

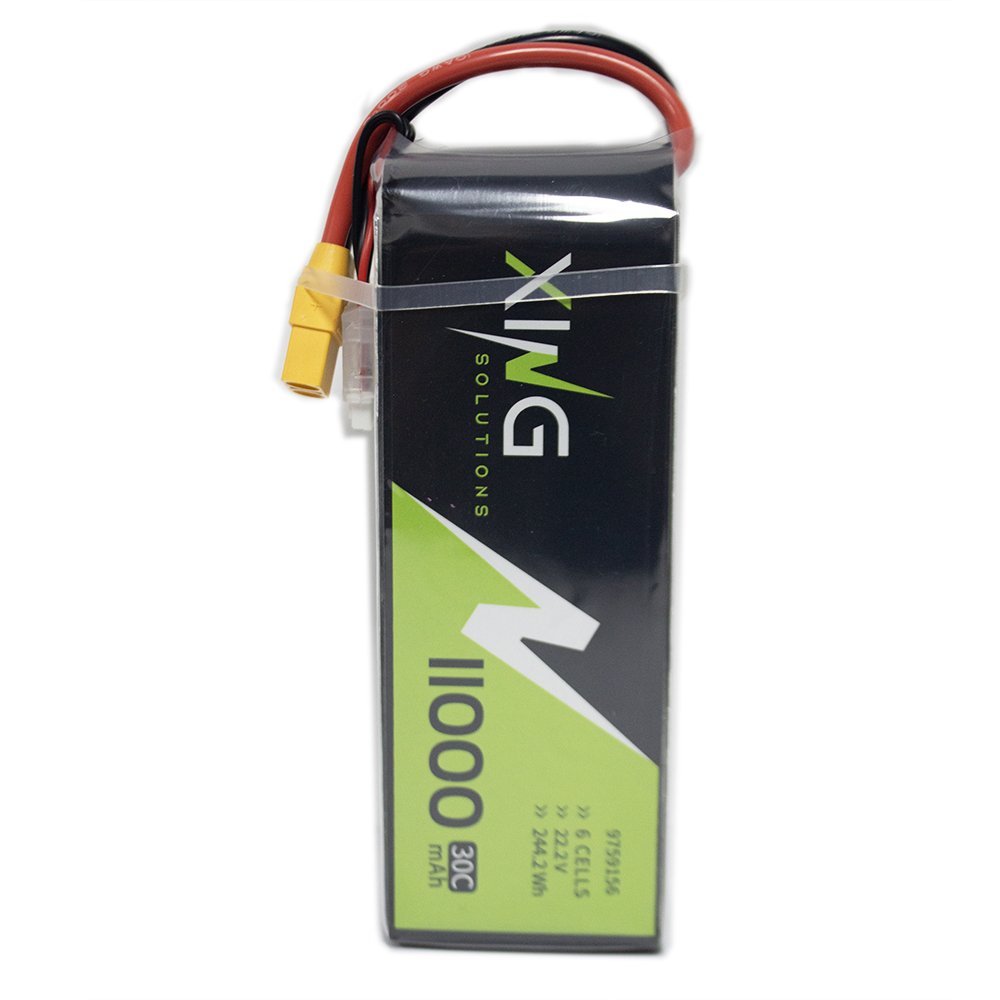

22.2V 11000mAh MODEL Battery
- Model No : 9759156
- Capacity : 11000mAh(0.5C)
- Weight: 1250±5g
- Dimensions:167 Length x61mm Width x 60mm Height
- Connector Type:T plug DC5 plug XT60 XT90
- Nominal Voltage : 22.2V
- Full Charge Voltage : 25.6V
- Full Discharge Voltage : 18V
- Cycle LIfe : 300Cycles
- Charge Current : 0～2C
- Max. Continuous Discharge Current : 10C
- Max. Instantaneous Discharge Current : 30C(<200ms)
14.8V 7000mAh MODEL Battery
- Model No : 8845145
- Capacity : 7000mAh(0.5C)
- Weight:550±5g
- Dimensions: 156mm Length x47mm Width x 38mm Height
- Connector Type:T plug DC5 plug XT60 XT90
- Nominal Voltage : 14.8V
- Full Charge Voltage : 16.8V
- Full Discharge Voltage :12V
- Cycle LIfe : 300Cycles
- Charge Current : 0～2C
- Max. Continuous Discharge Current : 20C
- Max. Instantaneous Discharge Current : 60C(<200ms)
22.2V 6000mAh MODEL Battery
- Model No : 9048145
- Capacity : 6000mAh(0.5C)
- Weight:828±5g
- Dimensions:152mm Length x48mm Width x 52mm Height
- Connector Type:T plug DC5 plug XT60 XT90
- Nominal Voltage : 22.2V
- Full Charge Voltage : 25.2V
- Full Discharge Voltage : 18.0V
- Cycle LIfe : 300Cycles
- Charge Current : 0～2C
- Max. Continuous Discharge Current : 35C
- Max. Instantaneous Discharge Current : 100C(<200ms)
MODEL battery
| Product No. | Typical Capacty(mAh) | Max Discharge Current | Dimensions L*W*H(mm) | Weight(g) | |
|---|---|---|---|---|---|
| 1 | 7543126-3300-11.1V-3S | 3300 | 100C | 136*45*23.5 | 265 |
| 2 | 7543126-3300-22.2V-6S | 3300 | 100C | 136*45*42 | 500 |
| 3 | 8243126-4000-22.2V-6S | 4000 | 100C | 136*45*47.5 | 590 |
| 4 | 1142126-6200-22.2V-6S | 6200 | 60C | 137*45*63 | 730 |
| 5 | 1042126-7000-22.2V-6S | 7000 | 60C | 136*45*67 | 735 |
| 6 | 8845145-7000-14.8V-4S | 7000 | 60C | 156*47*38 | 550 |
| 7 | 8248145-5000-14.8V-4S | 5000 | 100C | 156*50*31.5 | 530 |
| 8 | 8248145-5000-22.2V-6S | 5000 | 100C | 156*50*46 | 725 |
| 9 | 9048145-6000-14.8V-4S | 6000 | 100C | 156*50*39 | 600 |
| 10 | 9048145-6000-22.2V-6S | 6000 | 100C | 156*50*50 | 820 |
| 11 | 9248145-6500-22.2V-6S | 6500 | 100C | 156*50*52 | 850 |
| 12 | 6570140-6000-22.2V-6S | 6000 | 100C | 150*72*44 | 850 |
| 13 | 9759156-11000-22.2V-6S | 11000 | 30C | 167*61*60 | 1250 |
| 14 | 1059156-10000-22.2V-6S | 10000 | 80C | 167*61*60 | 1250 |
| 15 | 9074170-12000-22.2V-6S | 12000 | 60C | 182*76*55 | 1500 |
| 16 | 1174170-16000-22.2V-6S | 16000 | 40C | 182*76*68 | 1900 |
| 17 | 1190190-22000-22.2V-6S | 22000 | 40C | 202*93*69 | 2650 |
MODEL-battery-（ high voltage battery3.85V）
| Product No. | Typical Capacty(mAh) | Max Discharge Current | Dimensions L*W*H(mm) | Weight(g) | |
|---|---|---|---|---|---|
| 1 | 1143126-8000-23.1-6S | 8000 | 75C | 138*45*63 | 800 |
| 2 | 8559156-10000-23.1V-6S | 10000 | 60C | 168*61*52 | 1100 |
| 3 | 7574170-12000-23.1V-6S | 12000 | 45C | 185*76*44 | 1265 |
| 4 | 9574170-16000-23.1V-6S | 16000 | 45C | 185*76*58.5 | 1710 |
| 5 | 1090190-22000-23.1V-6S | 22000 | 45C | 206*93*57 | 2300 |
| 6 | 1143126-8000-30.8-8S | 8000 | 75C | 138*45*83 | 1055 |
| 7 | 8559156-10000-30.8-8S | 10000 | 60C | 168*61*69 | 1430 |
| 8 | 7574170-12000-30.8-8S | 12000 | 45C | 185*76*57 | 1660 |
| 9 | 9574170-16000-30.8-8S | 16000 | 45C | 185*76*77 | 2250 |
| 10 | 1090190-22000-30.8-8S | 22000 | 45C | 206*93*75 | 3010 |
